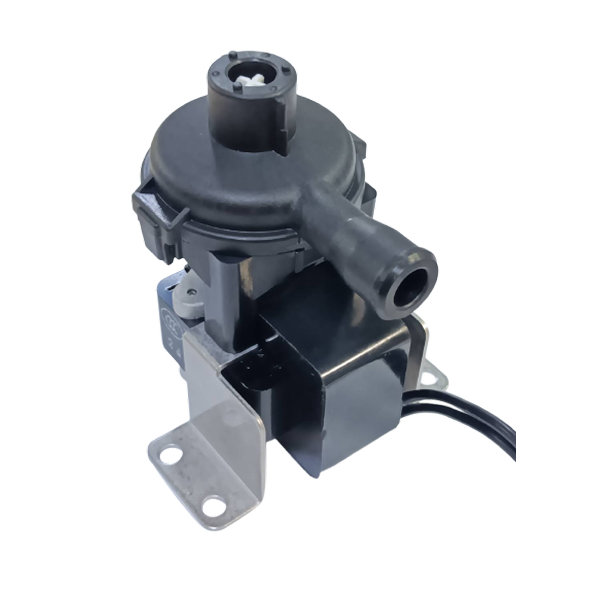

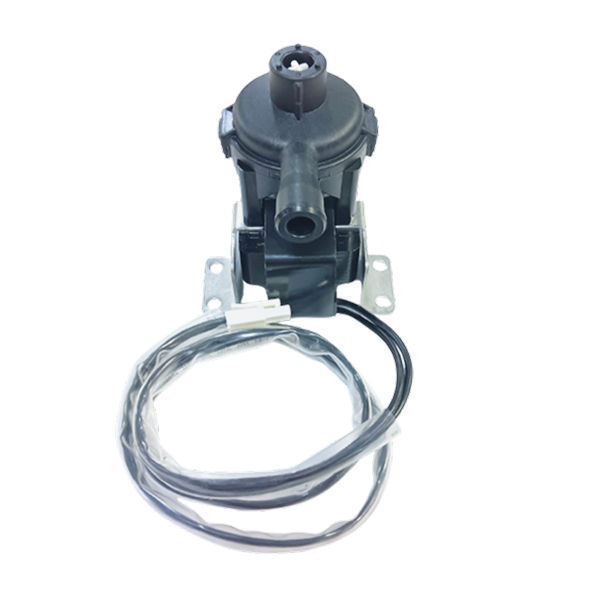

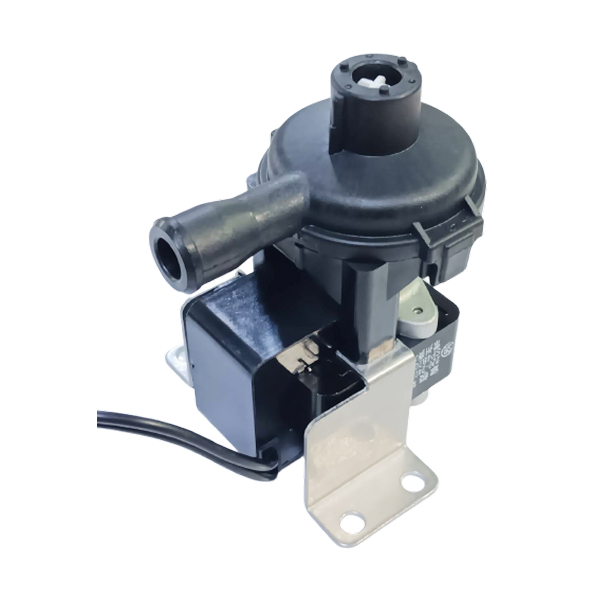

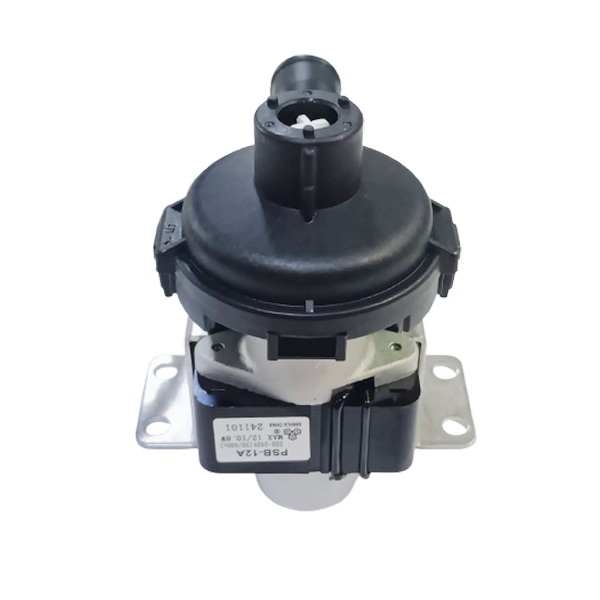

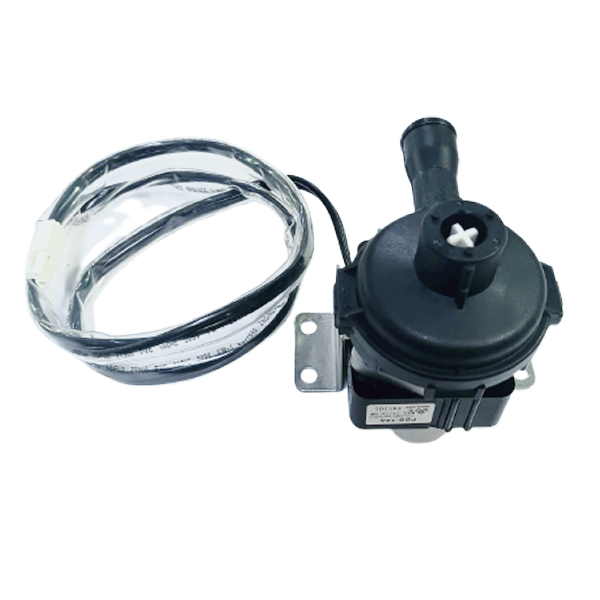

SANHUA Drain Pump รุ่น PSB-12(A) YKT-2

Description

SANHUA Drain Pump รุ่น PSB-12(A) YKT-2

Specification

1. Rated voltage : AC220~240V-50/60Hz
2. Voltage range : ± 10%V rated voltage
3. Current : 114/92 mA(AC230V-50/60Hz)Max. (on drain)
4. Input : 12/10.8 W(AC230V-50/60Hz)Max. (on drain)
5. Insulation class : class “E”
6. Fluid : Drain water
7. Fluid temperature : 0°C to +40°C (but no frozen water)
8. Operating ambient temperature : -10°C to + 45°C
9. Storage temperature : -20°C to +70°C
10. Ambient humidity : 95%RH Max.
11. Discharging : 24L/h(400ml/min)Min. (1200mm lift 10mm water level rated voltage)
12. fluid volume : or 30L/h(500ml./min)Min. (850mm lift 10mm water level rated voltage)
13. Noise Max. : 40dB per “A”scale (1 meter distance from drive motor head empty operating ,1200mm lift 10mm water level rated voltage)
14. Insulation resistance : 100MQ or more at 500V.DC (at normal temp.& humid)
15. Dielectric strength : withstand AC1500V for one minute or AC1800V for one second.
16. Temp. rise : 75K (resistance method). (at rated voltage, 1200mm lift,10mm water level)
17. Specifications of Motor : Type: Single phase 2 poles shaded induction motor
18. Bearing :0il impregnated sintered bearing.
19. Life span : 15000h (At rated voltage and with 1200mm lift,10mm water level).
20. The discharge port of intensity : 150N MIN.
