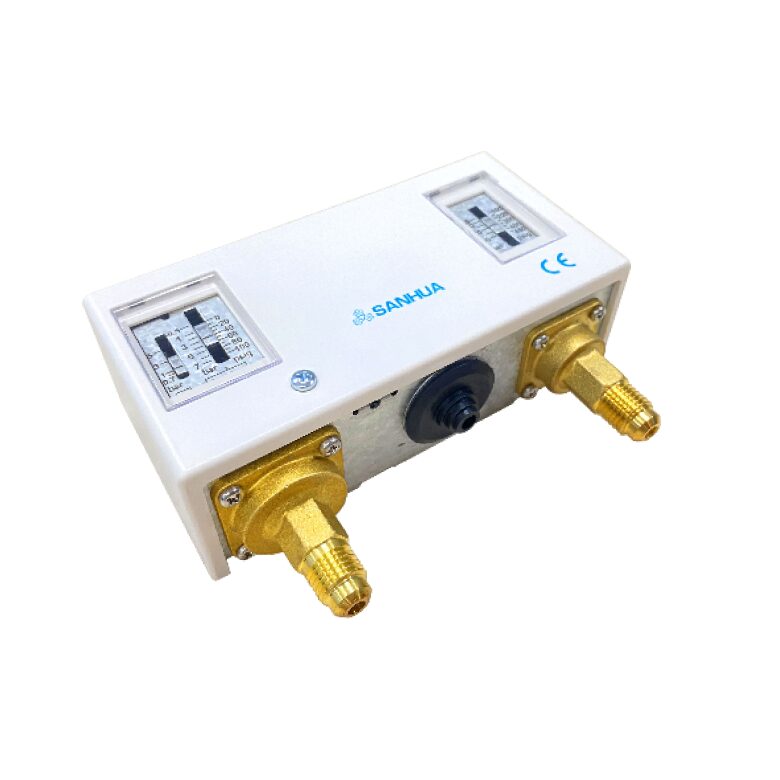

SANHUA Pressure Controls PSV Series PSV01/50/60/15/16/55

Description

Specification

• Applicable for all common HCFC, non-flammable HFC and HFO refrigerants such as: R134a, R404A/R507, R407C, R22,R407A/F R410A, R448A/449A, R452A, R513A, R450A, R1234ze(E) (for R32, R717, R290 and R1234yf applications please contact to us.)

• Medium temperature TS min./max. -40 °C /+120 °C
• Ambient temperature min./max. -30 °C/+65 °C
• Relative humidity : 0 – 95% RH
• Maximum working pressure (PSV): @HP: 3.5/4.5MPa @LP: 1.65 MPa
• Enclosure: IP30/IP44 (to be customized)
• Certification: CE, PED IV (In process) and UL Listed
