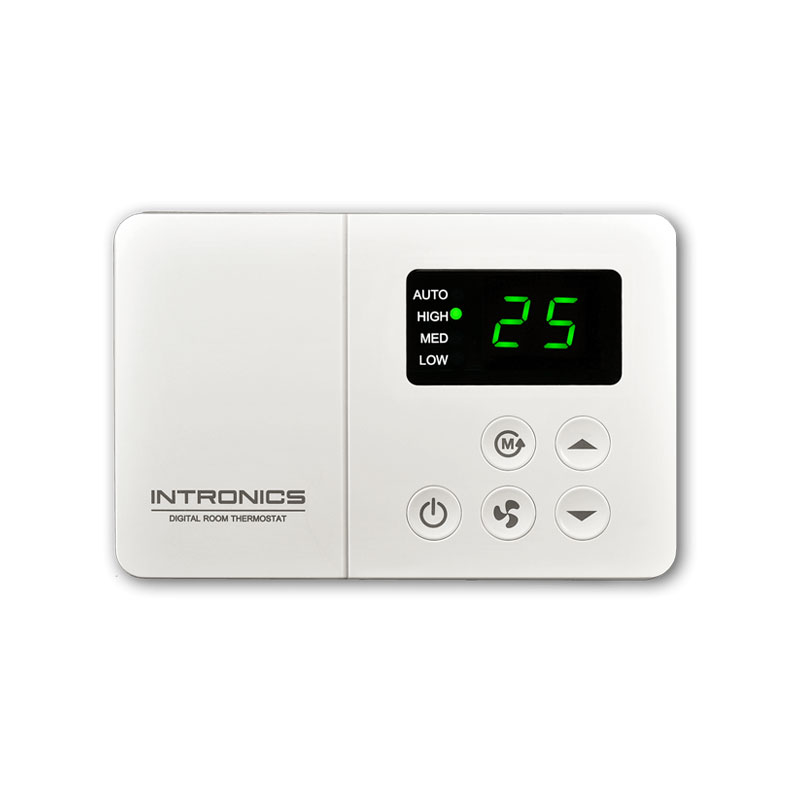

INTRONICS ดิจิทัล รูมเทอร์โมสตรัท รุ่น Digital Room Thermostat 2 LED

banner

INTRONICS ดิจิทัล รูมเทอร์โมสตรัท รุ่น Digital Room Thermostat 2 LED

฿ 1

แบรนด์

INTRONICS

ดาวน์โหลดเอกสาร

Product Manual : คู่มือติดตั้ง Digital Room Thermostat 2 LED

Additional information

Model

Digital Room Thermostat 2 LED

24 VAC system

18 – 30 VAC, 50/60 Hz

120 VAC system

96 – 144 VAC, 50/60 Hz

220 VAC system

198 – 250 VAC, 50/60 Hz

Temperature accuracy

± 1 °C

Storage temperature

0 – 70 °C

Ambient temperature

10 – 50 °C

Setting temperature range

15 – 30 °C (58 – 88 °F)

Maximum switching capacity

2 A @ 240 VAC
4 A @ 120 VAC

Minimum current

10 mA @ 5 VDC

Is a single piece fan coil thermostat for Cool & Heat/Cool application. It can be used with mini–split, duct type or chilled water system.

  • LED display
  • Cool & Heat cool application
  • 3 fan speeds
  • Compressor/valve status display
  • Compressor time delay feature
  • Auto restart
  • Sweep fan control (available in Cool only model)
  • Separable backplate for easy installation
