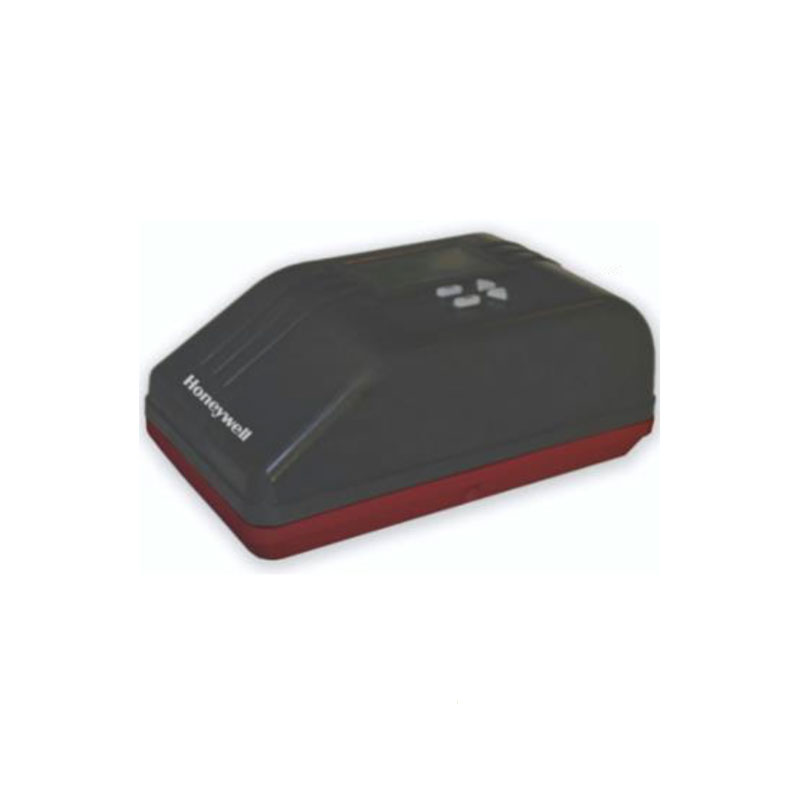

HONEYWELL MRP75MAC ACTUATORS

แบรนด์

HONEYWELL

ดาวน์โหลดเอกสาร

Product Manual : VPI Series Brochure

Additional information

Model

MRP75MAC

Actuator Technology

Electrical, bi-directional synchronous motor

Operation

Floating / Modulating (universal)

Supply Voltage

22-26V AC, 50/60 Hz or 22-26V DC

Failsafe Function

No

Control Signal

Analog 0(2)-10V DC or
0(4)-20mA and digital 3-point-floating or 2-position

Feedback

Linear signal, Auto (equal to analog control signal),
0-10V DC, 2-10V DC or 4-20mA

Operation Time

190 sec (from closed to fully open valve)

Power Consumption

12VA

Ambient Temperature

-10°C to +50°C / +14°F to +122°F

Wire Connection

Fixed, 5 wires x 0.80 mm2, halogen free, 1 meter cable

Protection Rating

IP54 including upside-down mounting

Weight

0.25 kg / 0.55 lb

Valve Size Compatibility

DN50-DN250
