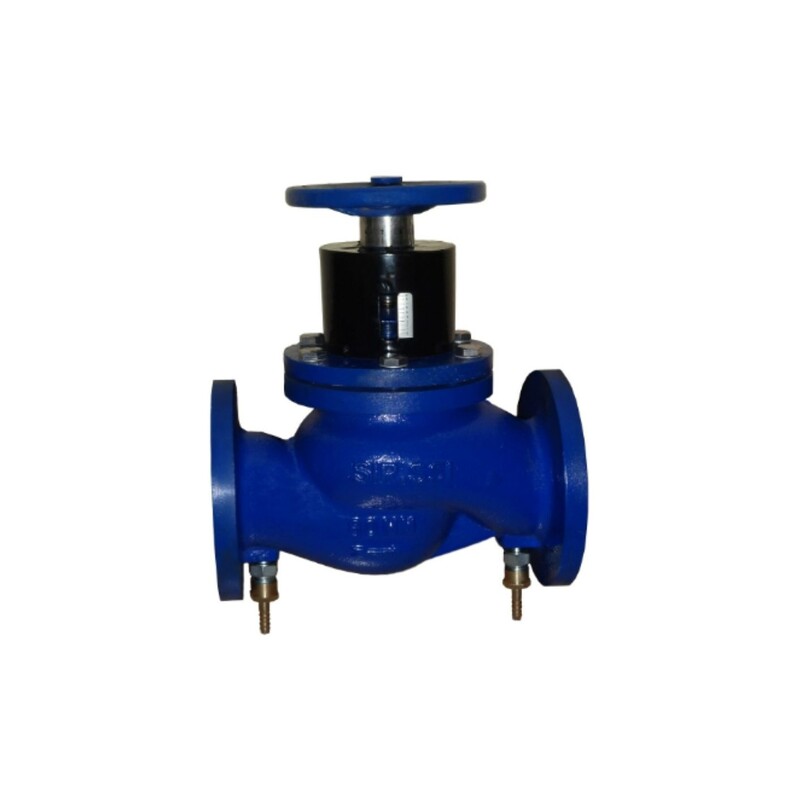

HONEYWELL Balancing Valve รุ่น KOMBI F2
HONEYWELL Balancing Valve รุ่น KOMBI F2
| Model | Size | Add to Cart |
|---|---|---|
| V4-BLC-GP16-G065 | 2-1/2" | |
| V4-BLC-GP16-G080 | 3" | |
| V4-BLC-GP16-G100 | 4" | |
| V4-BLC-GP16-G125 | 5" | |
| V4-BLC-GP16-G150 | 6" | |
| V4-BLC-GP16-G200 | 8" | |
| V4-BLC-GP16-G250 | 10" | |
| V4-BLC-GP16-G300 | 12" | |
| V4-BLC-GP16-G350 | 14" | |
| V4-BLC-GP16-G400 | 16" |
Features
- Wide Size range (DN50…DN300)
- Operated by Hand Wheel
- Cast iron Body
- S.S Disc
Specifications
- Sizes : DN50…DN300
- Nominal pressure : PN16
- Medium Temperature : -10°C ~ +110°C Maximum
- Body Material : IS:210, FG 220 CI
- Stem Material : ASTM A276,GR SS 410
- Disc Material : Stainless steel Disc
- Hand Wheel : Cast Iron
- Leakage Rate : No visible leakage
- Medium Type : Water
- Flange standard : ISO7005-1 (GB/T 9113)
- Shell Test pressure : 24bar
- Seal Test pressure : 17bar
