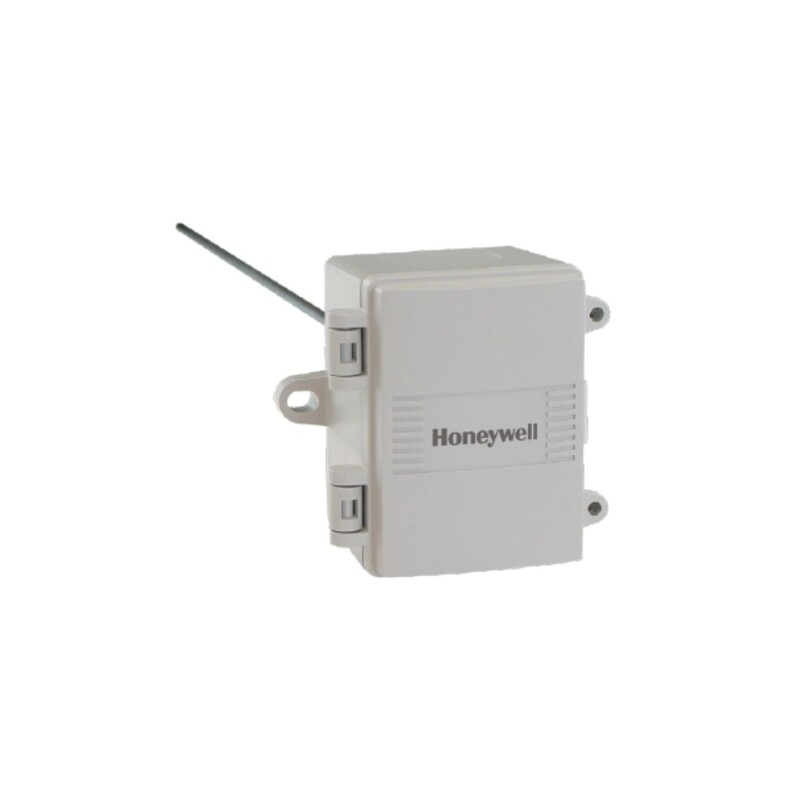

HONEYWELL เซนเซอร์อุณหภูมิเอนกประสงค์ รุ่น HTSAP

แบรนด์

HONEYWELL

รุ่น

HTSAP

ดาวน์โหลดเอกสาร

Product Manual : HTSAP

Additional information

Model

HTSAP

Sensor Type

Various thermistors or RTD

Sensor Accuracy

Thermistors: ±0.2°C (±0.36°F) @ 25°C (77°F)
Platinum RTD’s: ±0.3°C (±0.54°F)
Nickel RTD’s: ±0.4°C (±0.72°F) @ 0°C (32°F)

Temperature Range

-20 to 105°C (-4 to 221°F)

Wire Material

PVC insulated, parallel bonded, 22 AWG

Probe Material

304 series stainless steel

Probe Diameter

6 mm (0.236”)

Standard Lengths

50, 100, 150, 200, 300, and 450 mm
(2”, 4”, 6”, 8”, 12”, and 18”)

Enclosure

ABS – UL94-V0, IP65 (NEMA 4X)
C – includes terminal block
E – includes thread adapter (1/2” NPT to M16),
cable gland fitting, and terminal block

Termination

A – pigtail, 2 or 3 wire
C & E – Terminal block, 2 or 3 wire

Features

  • Choice of Various Thermistors and RTD’s
  • Selection of enclosure styles
  • Selection of probe lengths
  • Hinged and gasketed, ABS enclosure

*** Note : All immersion sensors require a thermowell (sold separately)

Applications

The HTSAP all purpose temperature sensor is designed for use in duct and immersion applications.
